* AIS Compatible

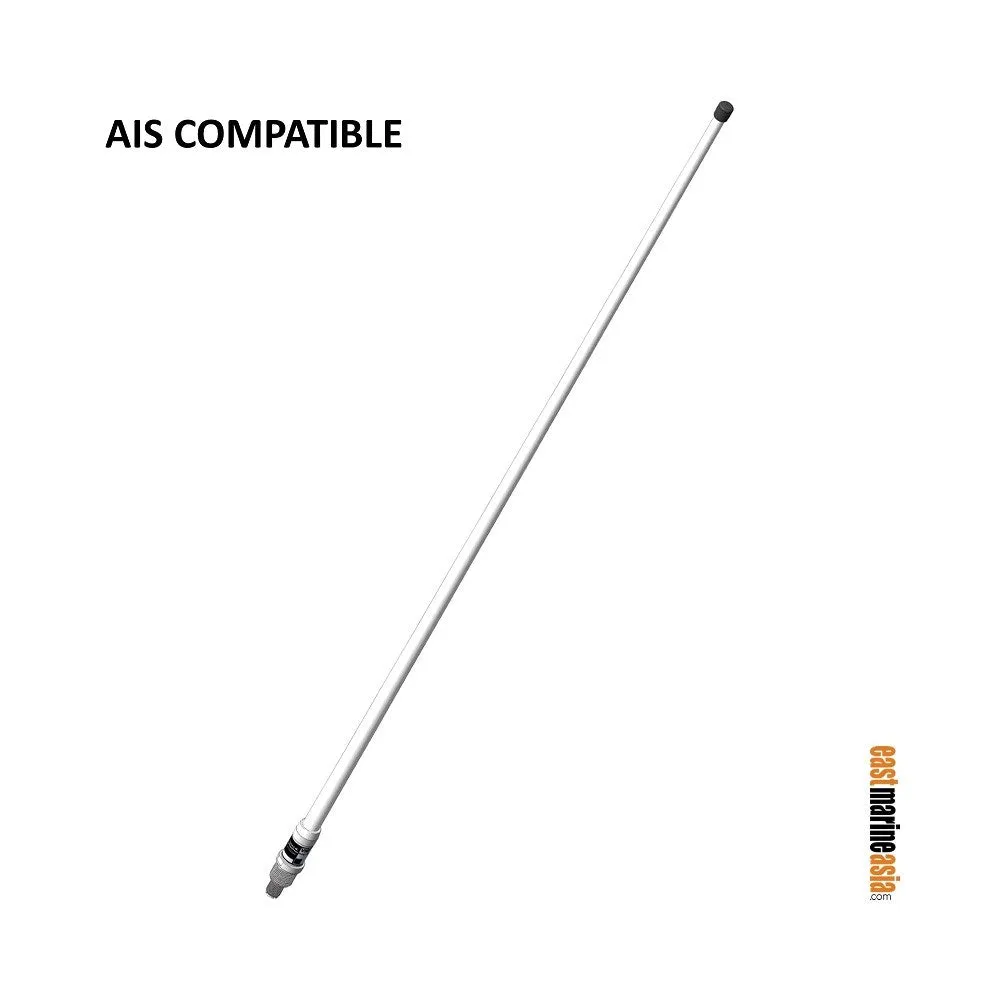

AC Antennas VHF-Light Marine and Land Based VHF Antenna is an omnidirectional whip antenna in glass fibre suitable for leisure boats etc.  The flexible “Celwave base” is the antenna base.  The VHF-light antenna is manufactured in good quality materials in order to prevent galvanic corrosion.  Radiating elements are made of brass.

Electrical specifications

• Frequency range: 156.0 - 162.5 Mhz
• Nominal impedance: 50 ohm
• VHF power rating: 100 W
• Gain: 0 dBd / 3 Marine dB
• VSWR: <2:1
• Polarisation: Vertical
• Connector: UHF-female
• DC-shorted: No

Mechanical specifications

• Length: 1.14 m (3.7 ft)
• Weight: 0.3 kg (0.66 lbs)
• Wind rating: 45 m/s (101 mph)
• Material: Fibreglass
• Colour: White polyurethane lacquer
• Temperature range: -40 to 60 °C (-40 to 140 °F)
• Ingress protection: IP66
