A state-of-the-art luber featuring a push-to-start ignition and a built-in precision oil dispenser for precise oil application. This advanced luber provides top-of-the-line convenience and accuracy. Its push-to-start ignition system eliminates the need for manual ignition, and its built-in precision oil dispenser ensures accurate and efficient oil application. With a 250ml capacity and a high-powered motor, this luber provides quick and efficient lubrication for any job.

• Application |  Single or Multi-Point (up to 12 points)
• Size |  8 oz capacity (250 cc)
• Technology |  Powerful mechanical fixed-displacement pump
• Dispensing Power |  Up to 1000 PSI Can be remotely mounted up to 30 ft
• Power Source (not included) |  or remote AC/DC power (call for remote options)
• Cycle |  Refillable with standard grease gun or pump
• Operating Span |  Refilled as needed Variable from 14 days to 2 years
• LED Indicators |  Tri-color LEDs to indicate normal operation, low battery, low temp
• Weatherproof |  Suitable for outdoor, Weather cap available
• Dispensing Rate |  Standard timed intervals or custom programming available
• Includes 1/2"F X 1/4"m Brass Adapter

Description

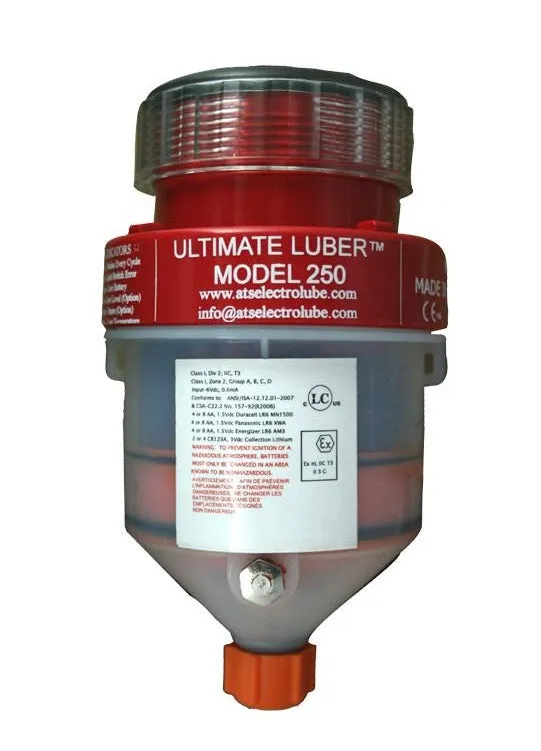

The Ultimate Luber™ is a powerful, motor-driven automatic lubricator that is refillable using standard grease guns. Its microprocessor-controlled, energy-efficient motor delivers grease to a fixed displacement pump which produces pressures up to 1000 PSI. This strength allows the Ultimate Luber™ to drive lubricant through long feed lines and to cycle progressive distributors to feed several bearings consecutively. When a dispensing cycle is selected, the units will activate at programmed intervals. At each interval, the Ultimate Luber™ dispenses approximately 250cc's of grease. Neither temperature nor altitude will affect the lubricant output.
