Product Details
＋
Features:
- Connector SMA male.
- 2 Meter Wire Length.
- Radome material Metal.
- The radome colour is black.
- Operation Temperature: -30~60.
- Humidity: % 5~95.
- Magnetic Base.
Package Includes :

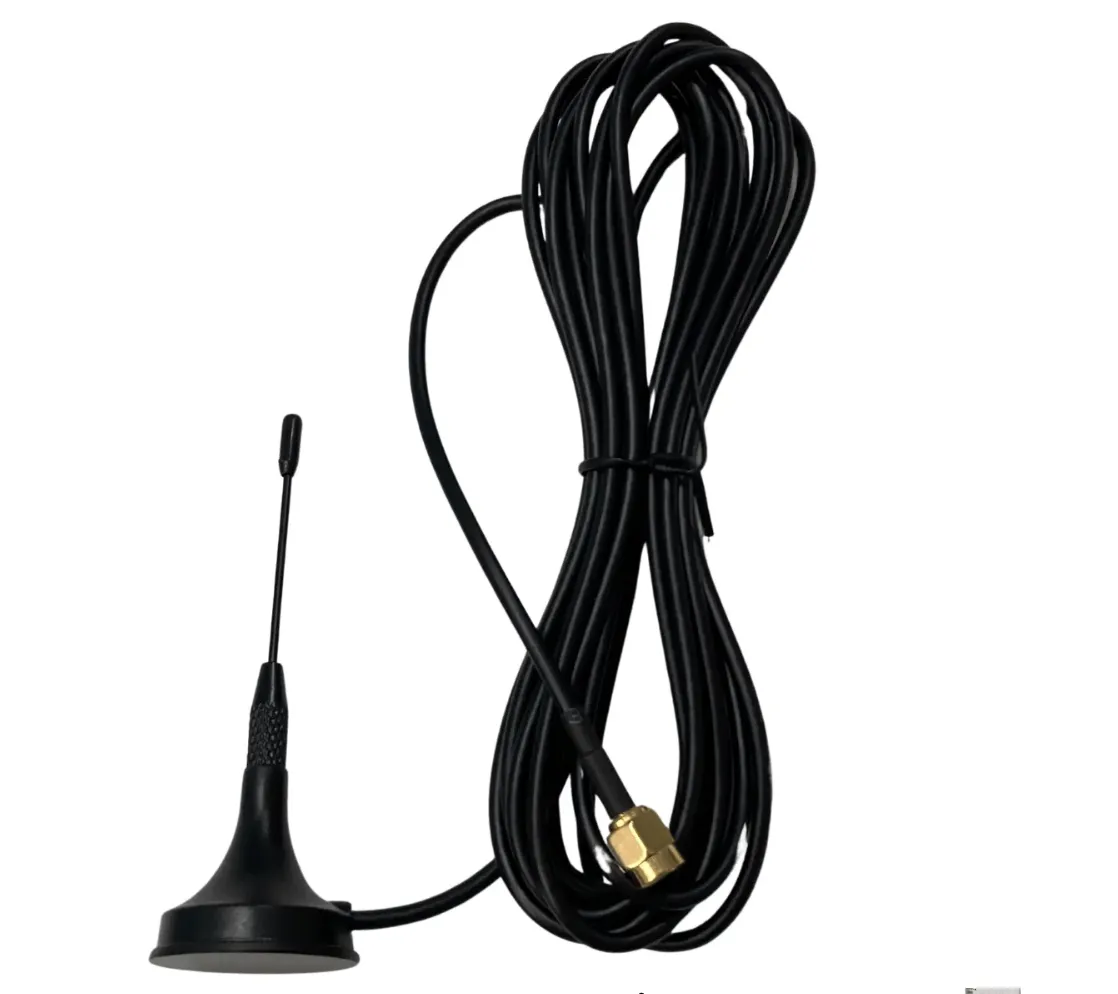

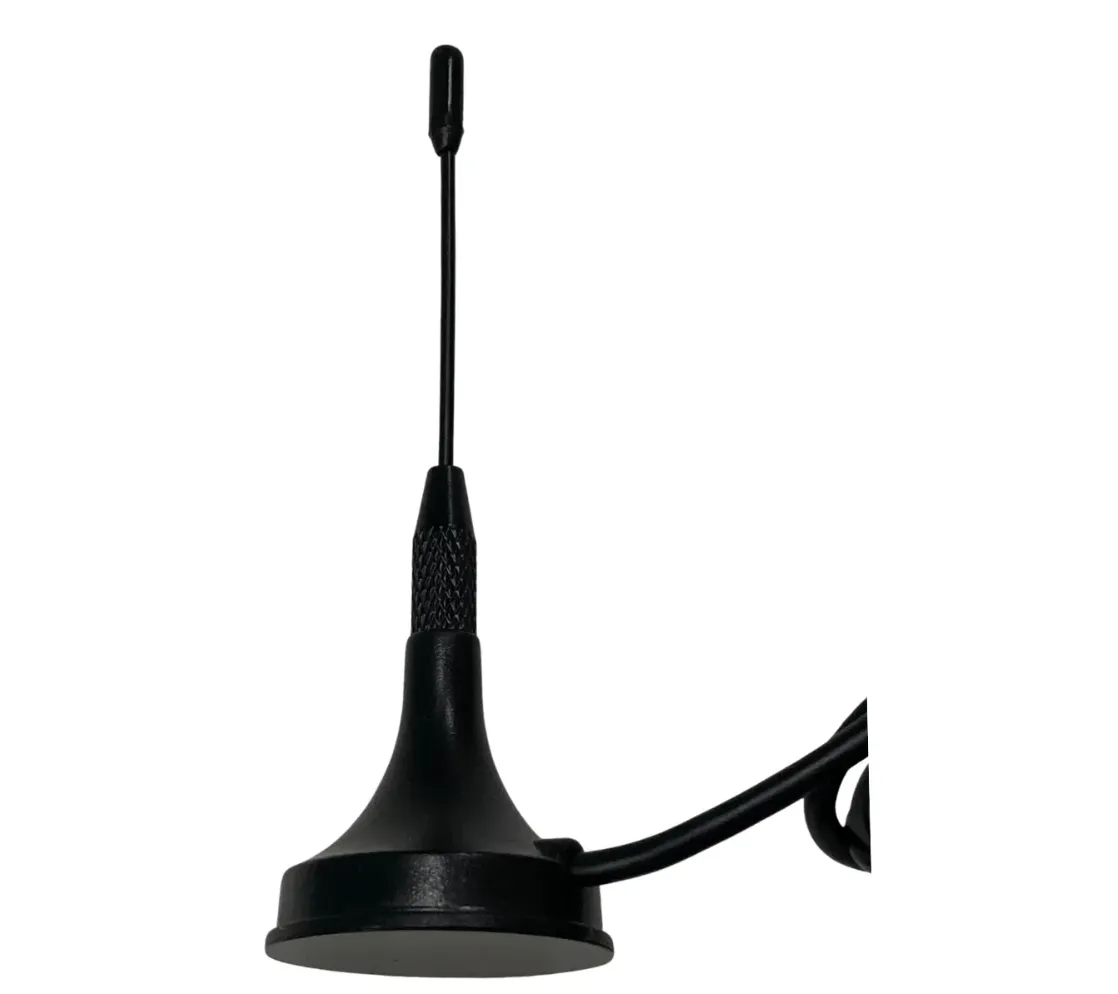

1 x SAM Head Sucker Antenna for SIM900A SIM908 Board GSM Antenna.
Specifications:-
| Frequency range (MHz) |
800, 900, 1200, 1500, 1800 to 1900 |
| Power capacity (W) |
100 |
| Connector Type |
SMA(male) Elbow head |
| The antenna height (mm) |
90 |
| The gain (dBi) |
7 |
| Standing wave ratio |
1.5 or less |
| Input impedance () |
50 |
| The length of the feeder (m) |
3 |
| Feeder type |
RG174 |
| Joint type |
SMA male head (screw with needle) |
| Cable Length (Meter) |
2 |
