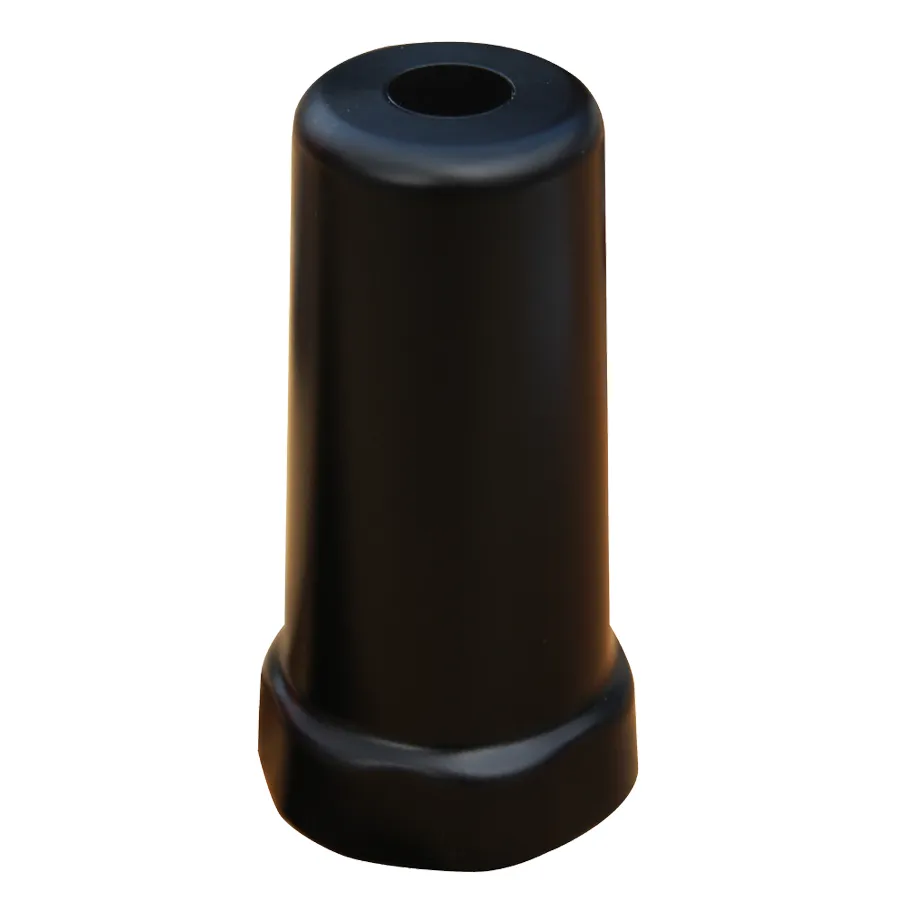

RFI Omni Directional Antenna Low Profile Stud LTE/4G 698-960 & 1710-2700Mhz
The CSM700 is a compact low-profile omnidirectional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698 MHz to 2.7 GHz.
The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications. The CSM700 is fitted with a 16mm stud mount incorporating an integrated rubber O-ring seal, and is IP65 rated.d trucks.
Features:
- Polycarbonate radome is ideal for outdoor use
- Attractive, low profile design for maximum overhead clearance
- Stud mounting offers ease of installation in the field
- Ingress protection to IP65
- Available in 2 standard versions:
- With 1.25m cable and FME connector
- Other cable/connector configurations available upon request
Specifications:
| Band | 698-960 MHz / 1710-2170 MHz / 2300-2700 MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 2dBi / 3.5 dBi / 5.0 dBi |
| Power W | 10 |
| Cable and Connector | Either 1.25m RG58 terminated with SMA (M) connector or 5m RG58 with no connector |
| Whip Length mm | 80mm |
| Radome Diameter mm | 50mm |
| Packaging | Clear Bag |
| VSWR | 2.0:1 |
| Height mm | 95mm |
| Mounting | 16mm Threaded Stud |
