Product Details
＋

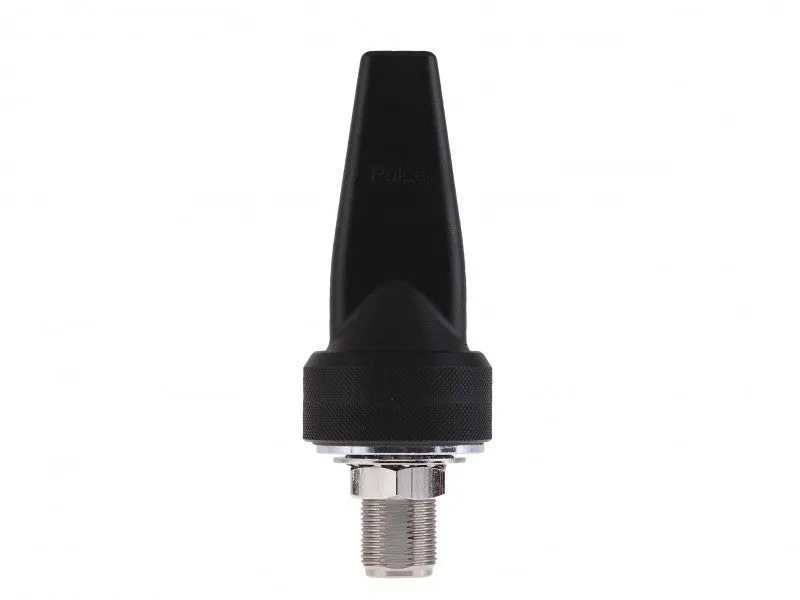

Shadow Direct Transit Antenna, Black, 4.5 / 5.6 / 4 dBi, 698-960 / 1710-2170 2400/2700 MHz
Download Datasheet
Specifications
| SKU | SLPT6982170DMN |
|---|---|
| Manufacturer Part Number | SLPT698/2170DMN |
| Manufacturer | Pulse |
| Antenna Category | 3G/4G/LTE (698-2700 MHz) |
| Working Frequency | 698 - 960 MHz |
| Gain | 4.5dbi |
| Working Frequency 2 | 1710 - 2400 MHz |
| Gain 2 | 5.6dBi |
| Working Frequency 3 | 2500 - 2700 MHz |
| Gain 3 | 4dBi |
| Antenna Style | Low Profile Antenna |
| Polarity | Linear |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohms |
| Max Input Power (W) | 10 |
| VSWR: < X: 1 | 3.0:1/ 2.0:1/ 2.2:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 2.5 |
| Thickness/Diameter (inches) | 1.5 |
| Weight (lbs) | 0.28 |
| Weight (grams) | 130 |
| Material | PC ABS Plastic |
| Operating Temp (celsius) | -40 to 85 |
| Mount Style | Direct: N-Female |
| Color | Black |
| Connector 1 | N-Female |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | No |
| Product Condition | New |
