Product Details
＋

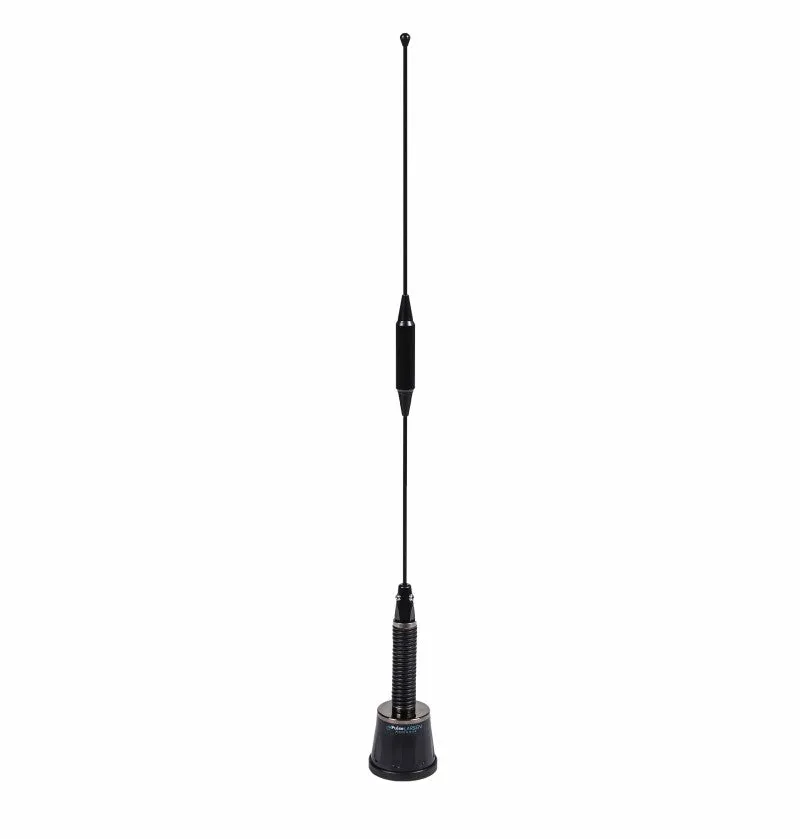

Pulse Larsen Antenna Triband,150, 450 & 748MHz, NMO, 17.810 Inches length
Type: Triband
Frequency: 150-165 Mhz / 450-470 Mhz / 806-940 Mhz
Gain: 0/5/4 dBi
Max height: 17.8 Inches
Power Ratings: 100 Watts
Whip Color: Black
Cable Assembly/Mount: Order Separately
Mount type: NMO with Pogo Pin
Specifications
| SKU | NMO150450758 |
|---|---|
| Manufacturer Part Number | NMO150/450/758 |
| Manufacturer | Pulse |
| Antenna Category | Tri-band (VHF-UHF-700/800 MHz) |
| Working Frequency | VHF:150-174 MHz |
| Gain | Unity 0 dBi |
| Working Frequency 2 | UHF: 430-520 MHz |
| Gain 2 | 5 dBi |
| Working Frequency 3 | P25: 700/800: 750-870 MHz |
| Gain 3 | 4 dBi |
| Antenna Style | Tri Band / All Band Whip |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 100 Watts |
| VSWR: < X: 1 | <2:1 at 150-165, 430-490 & 750-870 MHz. <2.5:1 at 165-174 & 490-520 MHz |
| Spring Loaded | Yes |
| Height/Length (inches) | 17.81 inches |
| Height/Length (mm) | 452.5 mm |
| Thickness/Diameter (inches) | 1.61 inches |
| Thickness/Diameter (mm) | 40.9 mm |
| Weight (lbs) | 0.45 lbs. |
| Weight (grams) | 205 grams |
| Material | Stainless Steel |
| Operating Temp (celsius) | -40 to 85 C |
| Mount Style | NMO |
| Color | Black |
| Connector 1 | NMO |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | Yes |
| Product Condition | New |
