Product Details
＋

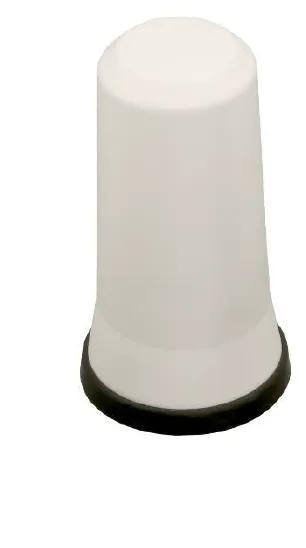

Antenna, 0.617-3.8GHz, NMOHF, White, 40.900 MM WIDTH, 77.700 MM HEIGHT, 50.000 IMPEDANCE
More Information
LPT600/3800NMOHFW, NMO High-Frequency mount, Monopole
Features:
- 4G / 5G LTE
- 617-960/1710-2170/ 2300-2700/3400-3800MHz
- Includes New Band 71 (617-698 MHz) and CBRS Bands 42 and 48 (3.4-3.7 GHz)
- Omni radiation pattern
- Average peak gain 3.8/5.2/5.6/5.5dBi
- Power rating 60W •Size Dia. 40.9mm (1.61”)
- Height 77.7mm (3.06”)
- NMOHF Connector
Specifications
| SKU | LPT6003800NMOHFW |
|---|---|
| Manufacturer Part Number | LPT600/3800NMOHFW |
| Manufacturer | Pulse |
| Antenna Category | 4G/LTE/5G (600-6000 MHz) |
| Working Frequency | 617-960 MHz |
| Gain | 3.8 dBi |
| Working Frequency 2 | 1710-2170 MHz |
| Gain 2 | 5.2 dBi |
| Working Frequency 3 | 2300-2700 MHz |
| Gain 3 | 5.6 dBi |
| Working Frequency 4 | 3400-3800 MHz |
| Gain 4 | 5.5 dBi |
| Antenna Style | Low Profile Antenna |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohmi |
| Max Input Power (W) | 60 W |
| VSWR: < X: 1 | 3:01 |
| Height/Length (inches) | 3.06 |
| Height/Length (mm) | 77.7 |
| Thickness/Diameter (inches) | 1.61 |
| Thickness/Diameter (mm) | 40.9 |
| Weight (lbs) | 0.14 |
| Weight (grams) | 63 |
| Material | UV Stabilized plastic |
| Operating Temp (celsius) | -40°to 85°C |
| Color | White |
| Connector 1 | NMO |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | No |
| Product Condition | New |
