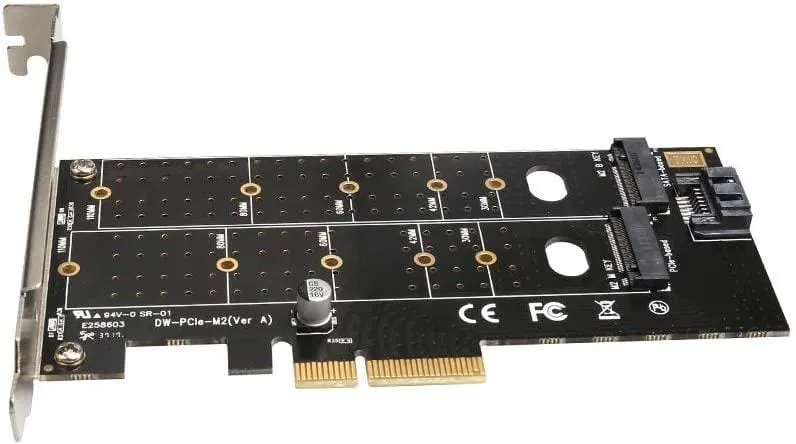

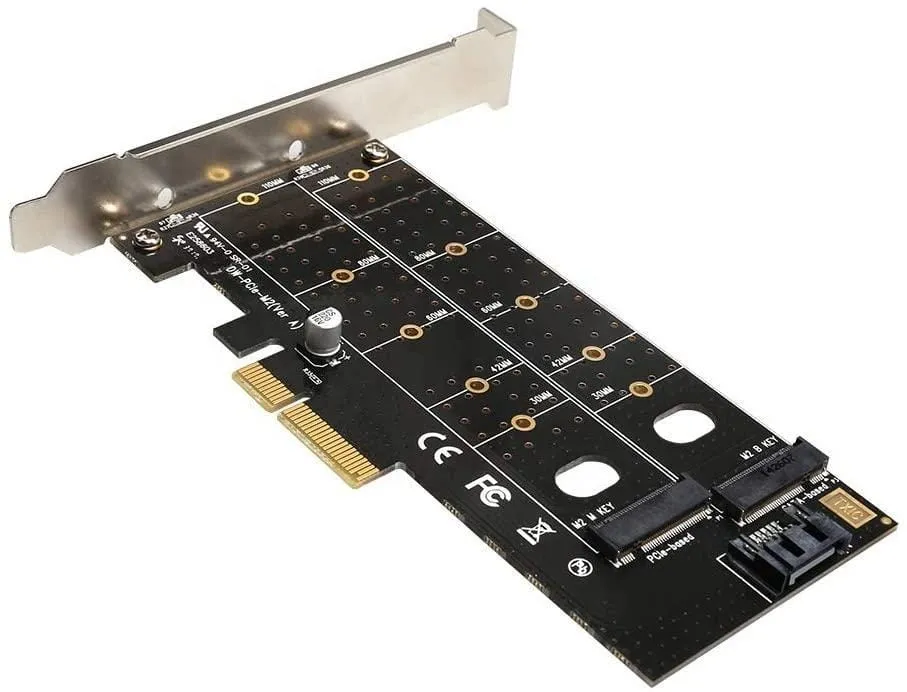

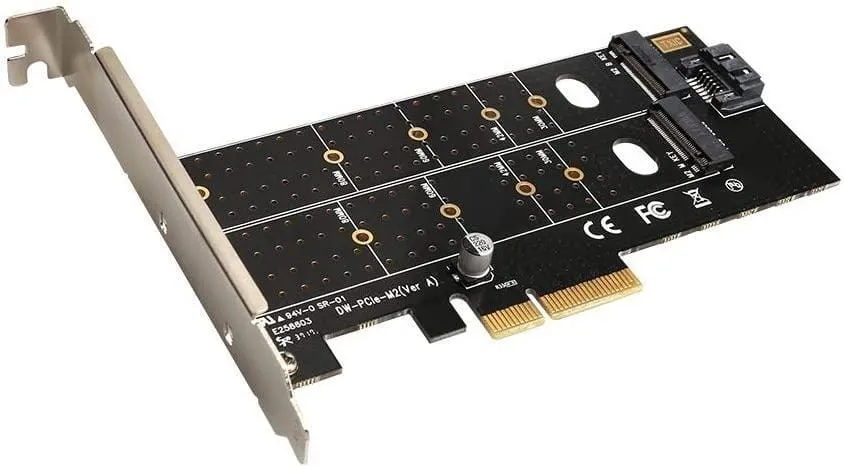

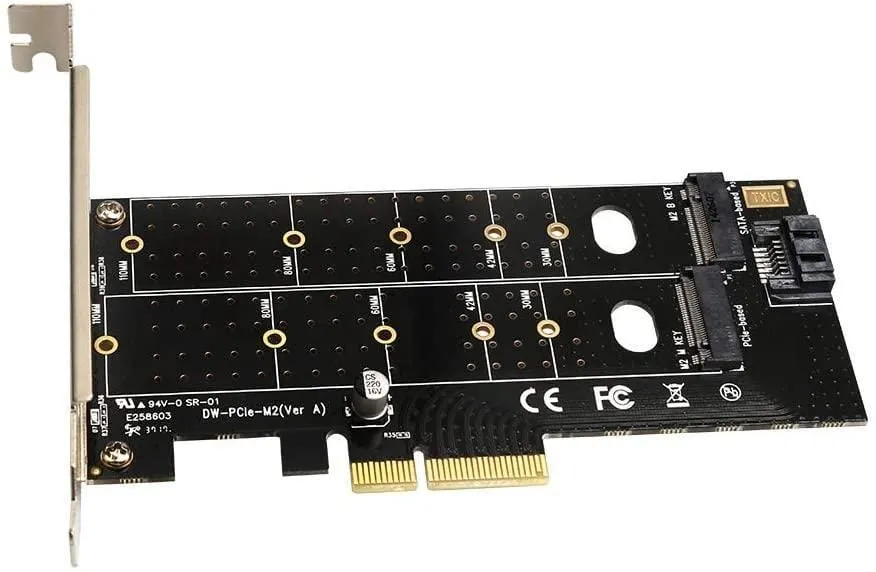

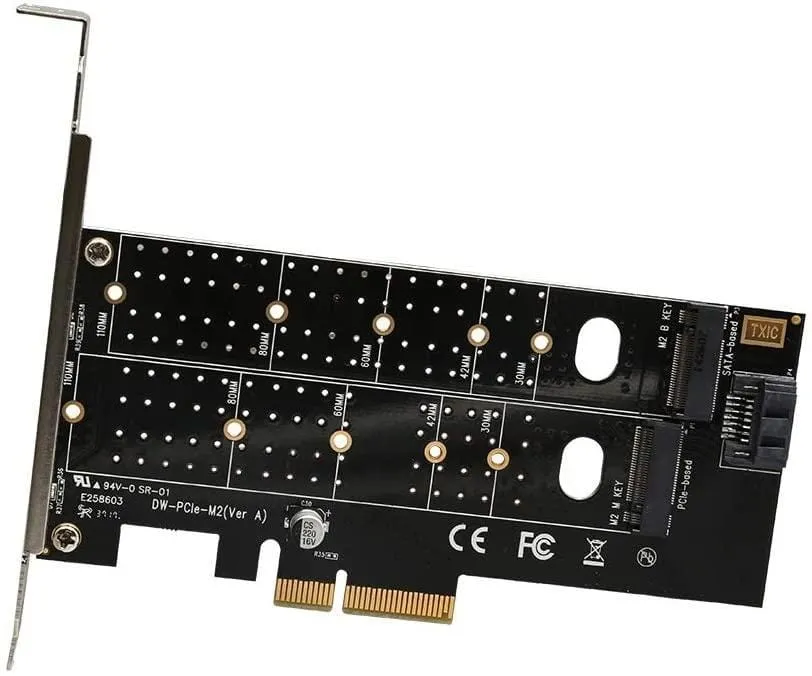

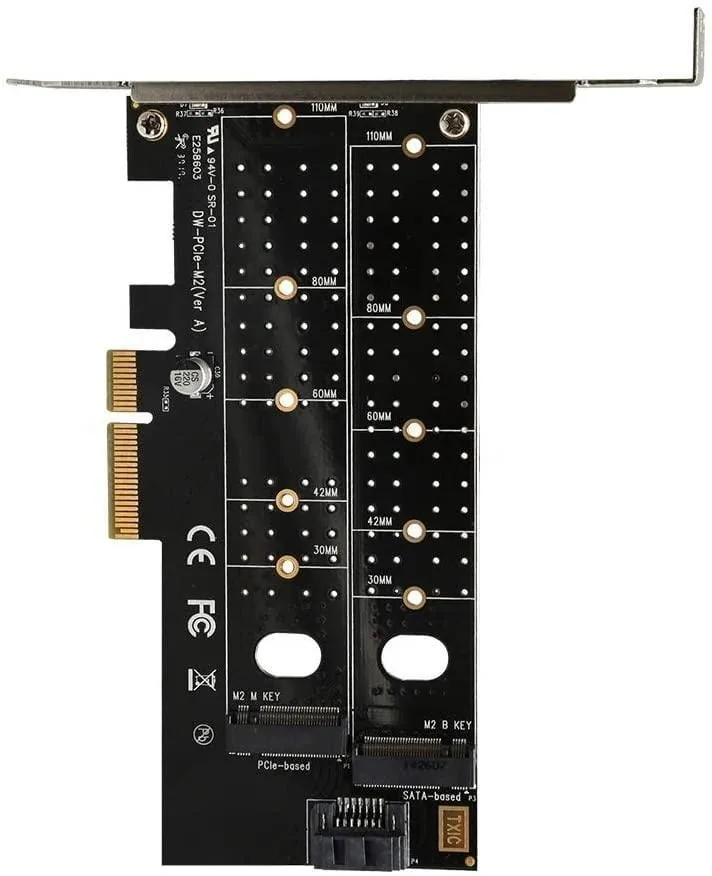

PCIE TO M 2(M KEY B KEY) - TXB044

This card provides a platform for adding up to two M.2 SSDs to virtually any computer that has a PCIe slot

It supports common M.2 SATA SSDs, as well as newer high-performance M.2 PCIe drives

When you couple this card with a PCI Express based M.2 drive

You can give your computers performance a noticeable speed boost

With support for PCI Express 3.0 (up to approximately 40Gbps)

You can install the latest high-performance M.2 PCIe SSDs inside your computer

Features

Expand the storage and improve the performance of your computer with slots for one M.2 SATA SSDs and one M.2 PCIe SSD

Supports PCI Express 3.0 (x4), ideal for a high-performance M.2 PCIe SSD (NVMe)

SATA slot feature a pass-through design, so your drive can connect to the SATA port on your host PC

Full bandwidth is available for each M.2 drive simultaneously (up to approximately 40Gbps for M.2 PCIe drive, and up to 6Gbps for M.2 SATA III drive)

Wide installation compatibility, with support for a range of M.2 drives (2280, 2260, 2242, 2230)

Adjustable stand-offs and multiple mounting holes support 80mm, 60mm, 42mm, and 30mm SSDs

Equipped with a full-profile bracket, includes a low-profile (half-height bracket) for installation in small form-factor computers

Installs into x4, x8, or x16 PCIe slots

Special Notes / Requirements

Note The maximum throughput of this card is limited by the bus interface

If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps.

If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.

System and Cable Requirements

PCI Express enabled computer with an available PCI Express

x4, x8, or x16 slot

One SATA host port on the host controller

An OS that natively supports PCIe SSDs(NVMe):

Windows 7 and later

Mac OS X 10.10.3 and later
