Product Details
＋
-
Transmitter (x1)
This compact transmitter MT200 employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.
Additional Features
Over 330-feet (100m) in open areas or 200-feet (60m) with obstacles
Reliable, broadcast-quality audio
Two transmitters could work simultaneously
96 selectable channels in 2 groups
Headphone monitoring
Easy-to-read LCD displays
M200 Frequency Band
638.000 MHz to 667.700 MHz (Group A)
668.000 MHz to 697.700 MHz (Group B))

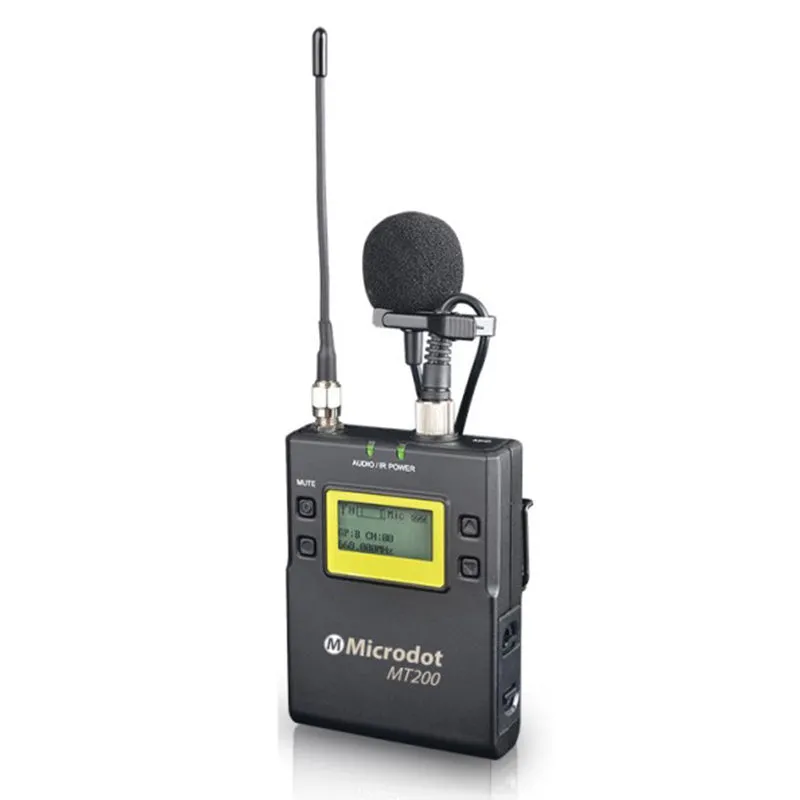

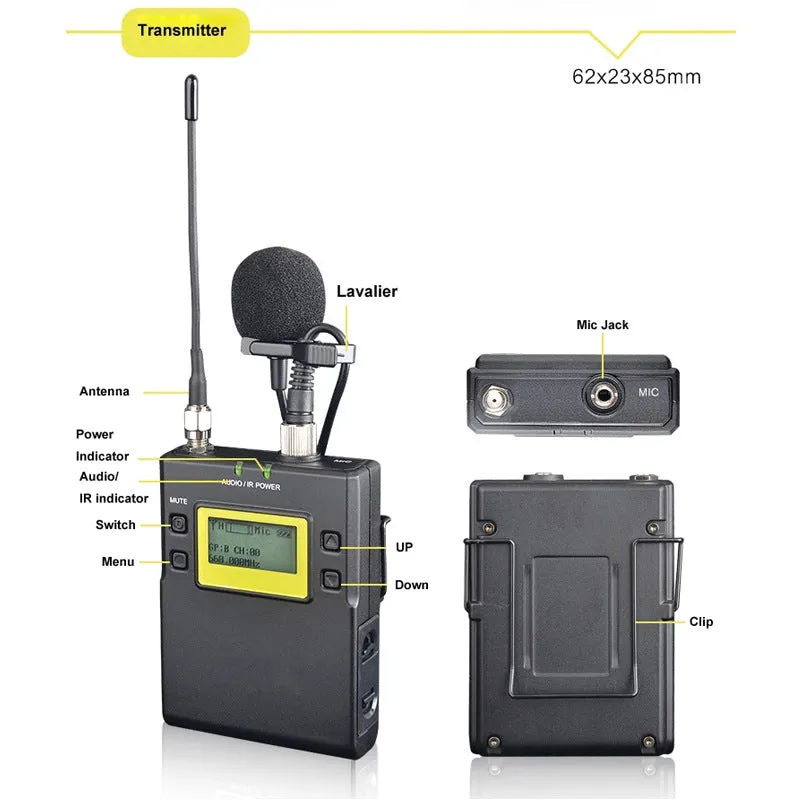

Body-pack transmitter (MT200)
This transmitter is a lightweight, compact transmitter that employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP- typemicrophone input connector. The RF power output can be switched. It is also equipped with a MIC/LINE input switching function to support a variety of input levels.
-
MT200 Transmitter
Channels: 96 Groups: A or B Oscillator Type: PLL Synthesizer Frequency Range: 638.000 MHz to 667.700 MHz (Group A)
668.000 MHz to 697.700 MHz (Group B)Reference Deviation: /- 5 kHz (-60dBV, 1kHz input) Signal to Noise Ratio: 70 dB or more Spur Suppression: -60 dB Voice Delay: 12 ms Antenna: 1/4λ wire antenna Audio input connector: 3.5mm mini jack Reference audio input level: -60dBV (MIC input, 0dB attenuation) Distortion: 0.5% or less Weight: Approx. 120g Battery: Two AA size batteries Dimensions: 85 x 62 x 23 mm Operating temperature: 0℃ to 50℃ Storage temperature: -20℃ to 55℃ -
In original box
1x MT200 Bodypack Transmitter
1x Uni-directional lavalier microphone
1x Windbuster
-
Download User Manual
( 350 KB PDF file)
