Product Details
＋

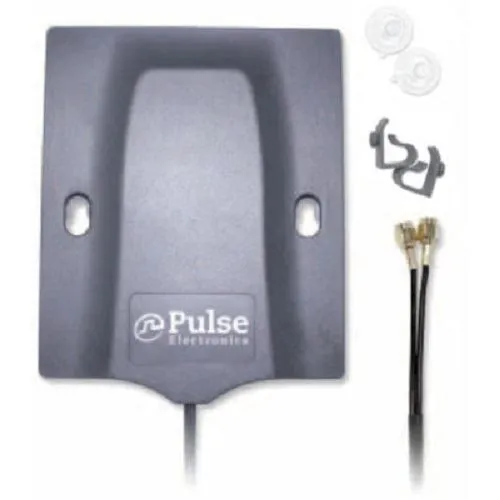

The Pulse LTE/MIMO 2x2 antenna (WA700-2700) is perfect for use as a laptop or window-mounted 2x2 multiband 4G LTE cellular MIMO antenna. This antenna operates through the entire 3G/4G/LTE spectrum for all carriers (AT&T, Verizon, Sprint, etc) from 700 MHz through 2700 MHz. The antenna is ideal for enhancing reception for voice, and mobile data and will also work for vehicular public safety applications with today's popular LTE modems.
In addition, this antenna has been shown to be a great match with the PicoZed SDR 2x2 system-on-module (SOM) based on the Xilinx Z-7035 and Analog Devices AD9361.
Larsen WA700/2700SMA Multiband Antenna Features
- Frequency: 700-960 MHz / 1710-1990 MHz / 2110-2170 MHz / 2500-2700 MHz
- Gain dBi: 2.5 dBi / 3.5 dBi
- Mobile Antenna Mounting Type: Glass
- Cable Length: 19.7 in
- Coaxial Cable Series: RG-174
- RF Connectors: SMA Male
- Maximum Power: 2 W
- Color: Black
- Mfg. Warranty: 1 Year
Specifications
| SKU | WA7002700SMA |
|---|---|
| Manufacturer Part Number | WA700/2700SMA |
| Manufacturer | Pulse |
| Antenna Category | 3G/4G/LTE (698-2700 MHz) |
| Working Frequency | 700-960 MHz |
| Gain | 2.5 dBi |
| Working Frequency 2 | 1710-2700 MHz |
| Gain 2 | 3.5 dBi |
| Antenna Style | WIndow Mount |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 2 Watts |
| VSWR: < X: 1 | 2.5:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 5.85 |
| Height/Length (mm) | 149 |
| Width (inches) | 5 |
| Width (mm) | 127 |
| Thickness/Diameter (inches) | 0.2 |
| Thickness/Diameter (mm) | 5.1 |
| Weight (lbs) | 0.3 |
| Weight (grams) | 132 |
| Material | PC/ABS |
| Mount Style | Suction Cup or Clip Mounted |
| Color | Black |
| Cable Type | RG-174 |
| Number of Cables | 2 |
| Cable Length (inches) | 40 |
| Connector 1 | SMA-Male |
| Includes | Two Clips & Two Suction Cups |
| OK for Outdoor Use | No |
| Vehicular | Yes |
| Ground Plane Required | No |
| Product Condition | New |
