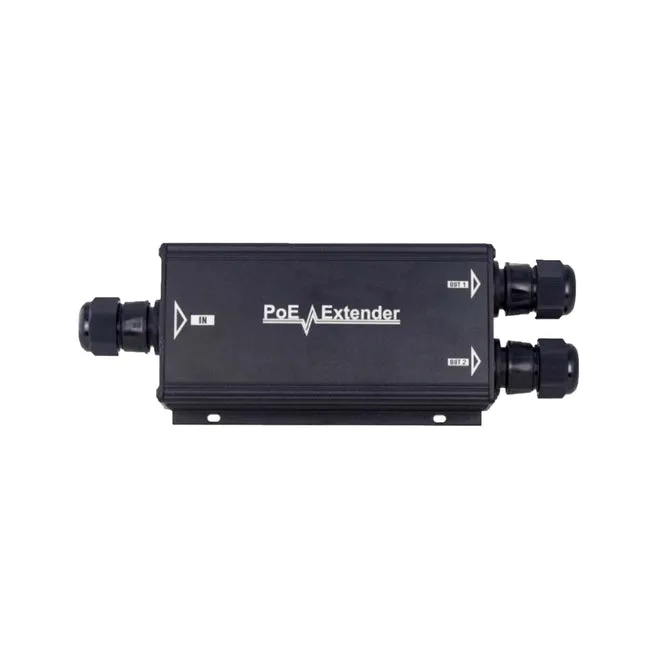

Outdoor Waterproof Gigabit PoE Extender (Comes with IPOE-INJECTOR2- 60 watt injector to make it long range)
Features
- Compatible with IEEE802.3af and IEEE802.3at
- Extends the range of PoE and Fast Ethernet an additional 300 ft
- No additional power supply is required
- Automatically detects and protects PoE equipments from being damaged
- Gigabit Full-rate network throughout the whole extended distance
- Wall-Mountable design
- Complies with IP66 (Support Outdoor rain prevention,need outdoor waterproof UTP cable)
- Easy plug-and-play installation
Model |
INVID-IPEXTOUTLR2 |
|
No. of channel |
1(PoE IN) into 2(PoE OUT) 328 Feet, Each Direction |
|
Pass Through Data Rate |
10/100/1000 Mbps half/full duplex |
|
Power over Ethernet input |
Pin Assignment and Polarity: Both 1/2 , 3/6 and 4/5,7/8 |
|
Power over Ethernet Output |
Pin Assignment and Polarity: 1/2 ( ), 3/6 (-) Output Power: up to 25W for 2PSE |
|
Connector |
Shielded RJ-45, EIA 568A and 568B |
|
Network cable |
Shielded category 5 (or higher) |
|
Dimension |
9.1 x 3.5 x 1.6 in (230mm x 90mm x 40mm) |
|
Mounting |
Wall of shelf |
|
Environment |
Indoor or outdoor |
|
Environmental Condition |
Operating Ambient Temperature:-13°F ~ 131°F(-25°C to 55°C) Operating Humidity: Complies with IP66 (Support outdoor rain prevention,need outdoor waterproof UTP cable) Storage Temperature:-22°F ~ 158°F (-30°C to 70°C) |
|
Regulatory Compliance |
IEEE 802.3af (15.4W) IEEE 802.3at (30W) (Requires PoE or INVID-IPEXTOUTLR2) IEEE 802.3at 4Pairs(60W) (Requires PoE or INVID-IPEXTOUTLR2) |
