Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Function | Wireless switch monitor |
| Interface | Radio (license-free and global): WPAN 802.15.4, 2.4 GHz, point-to-point FCC 15, IC, ACMA and ETSI approvals EMI immunity Up to 304 m [1000 ft] line-of-sight communication range when used with a Limitless™ switch (sold separately) Reliable, flexible, and secure wireless transmission 10 Vdc to 30 Vdc supply with NPN Normally Open output Diagnostics options Can potentially monitor up to 16 wireless switches Field pairing function allows for rapid configuration (add or subtract switches |
| IP Rating | IP67 |
| Mounting Type | Panel Mount/Bracket |
| Series | |
| Special Features | 2.1 dBi omni antenna (tilt & swivel design), for use in US/Canada |
| Standards | FCC 15.247 Industry Canada RSS 210 ETSI, CE mark ACMA, C-Tick mark |
| Supply Voltage | 10 Vdc to 30 Vdc |
| Termination | • Reduced installation/maintenance costs with no wires, conduit, strain relief, clips, connectors, connection boxes, etc. • Eliminates issues with wire connection integrity on moving equipment |
Overview

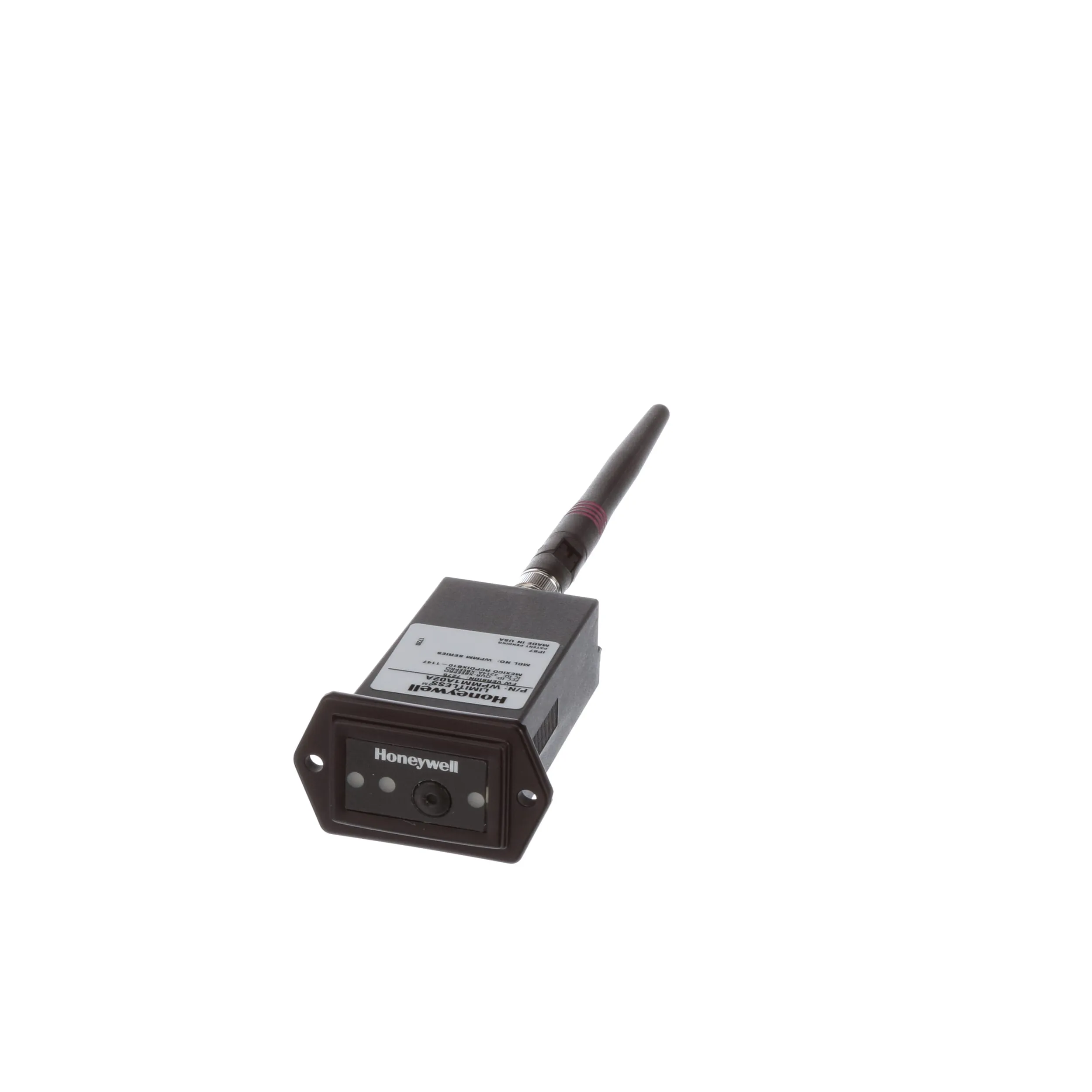

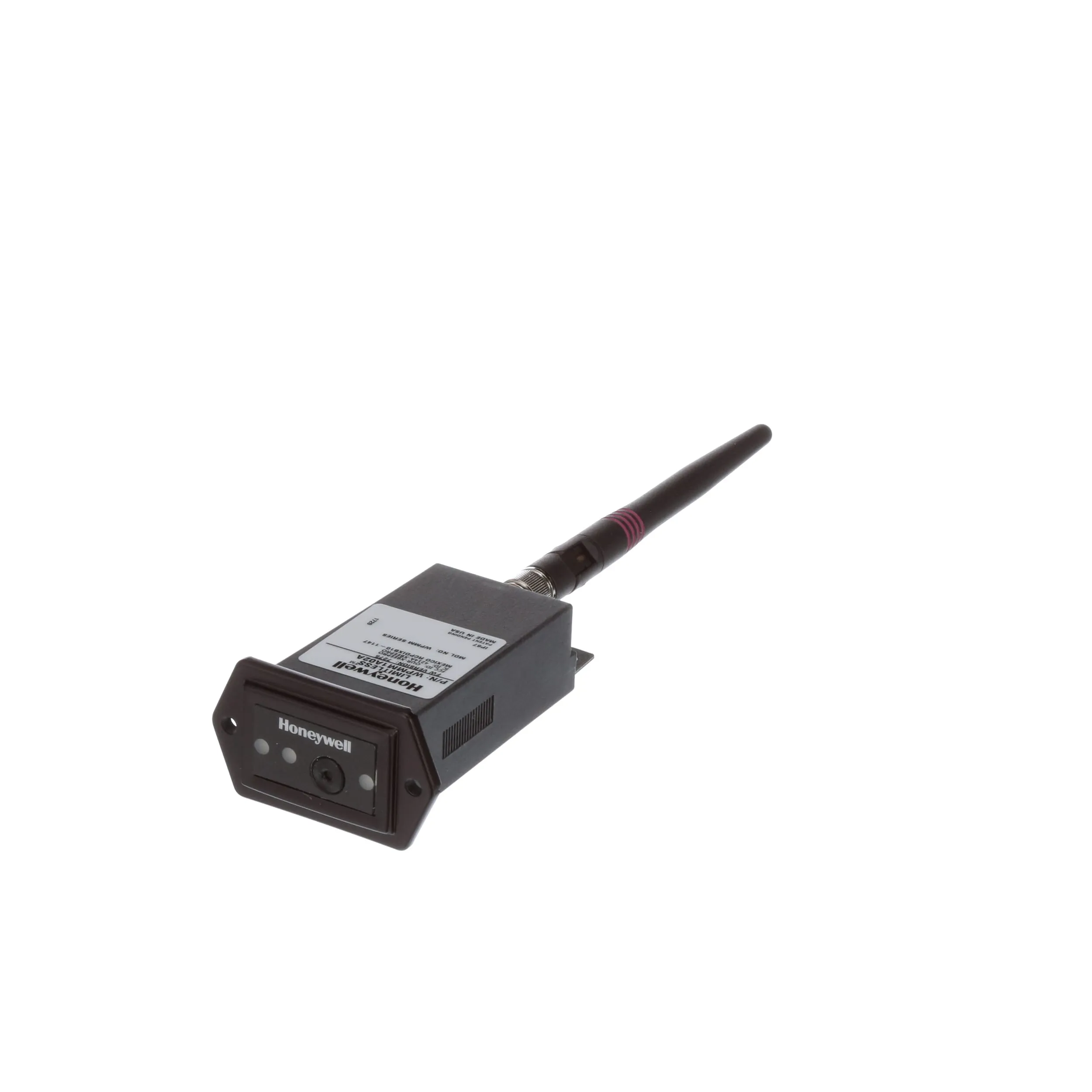

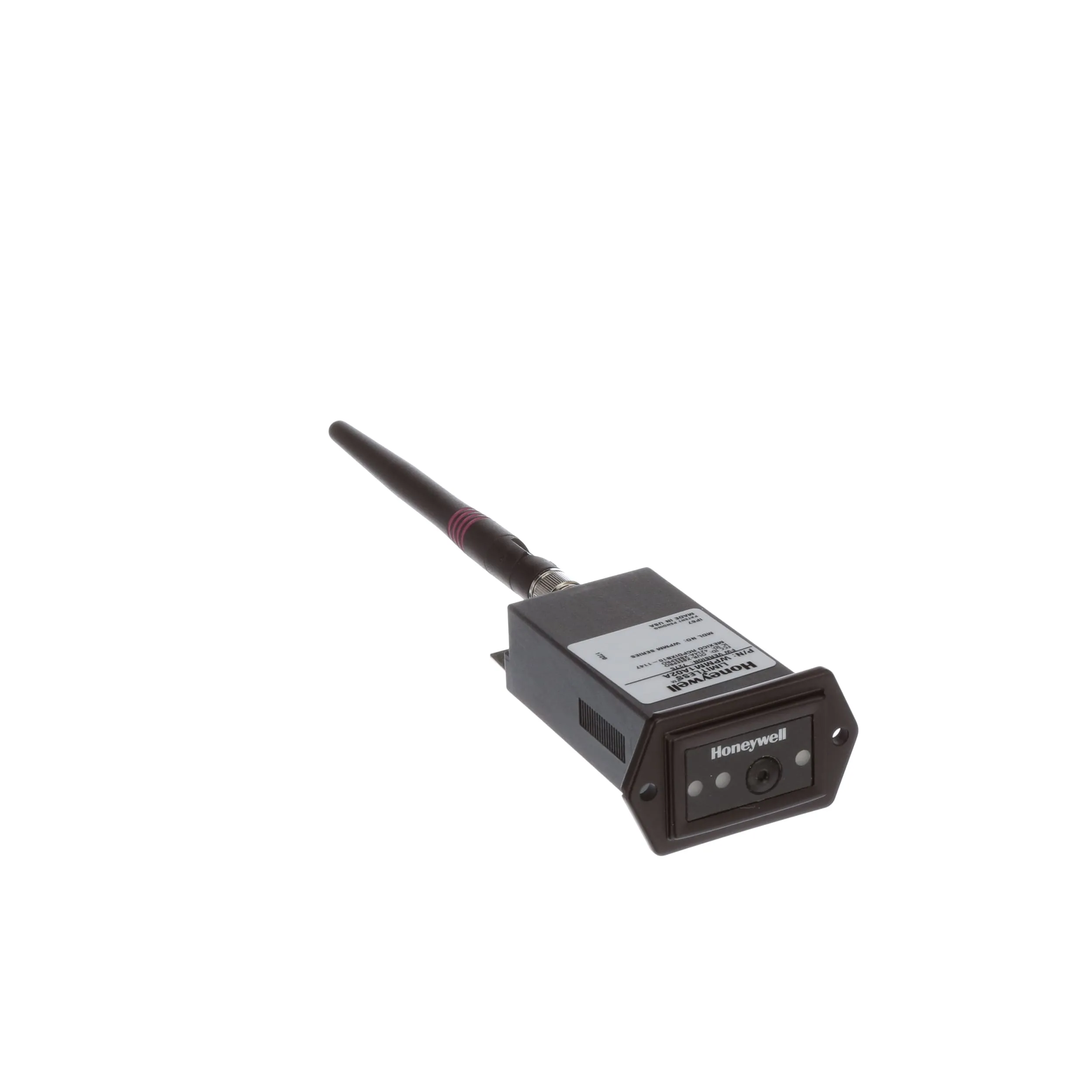

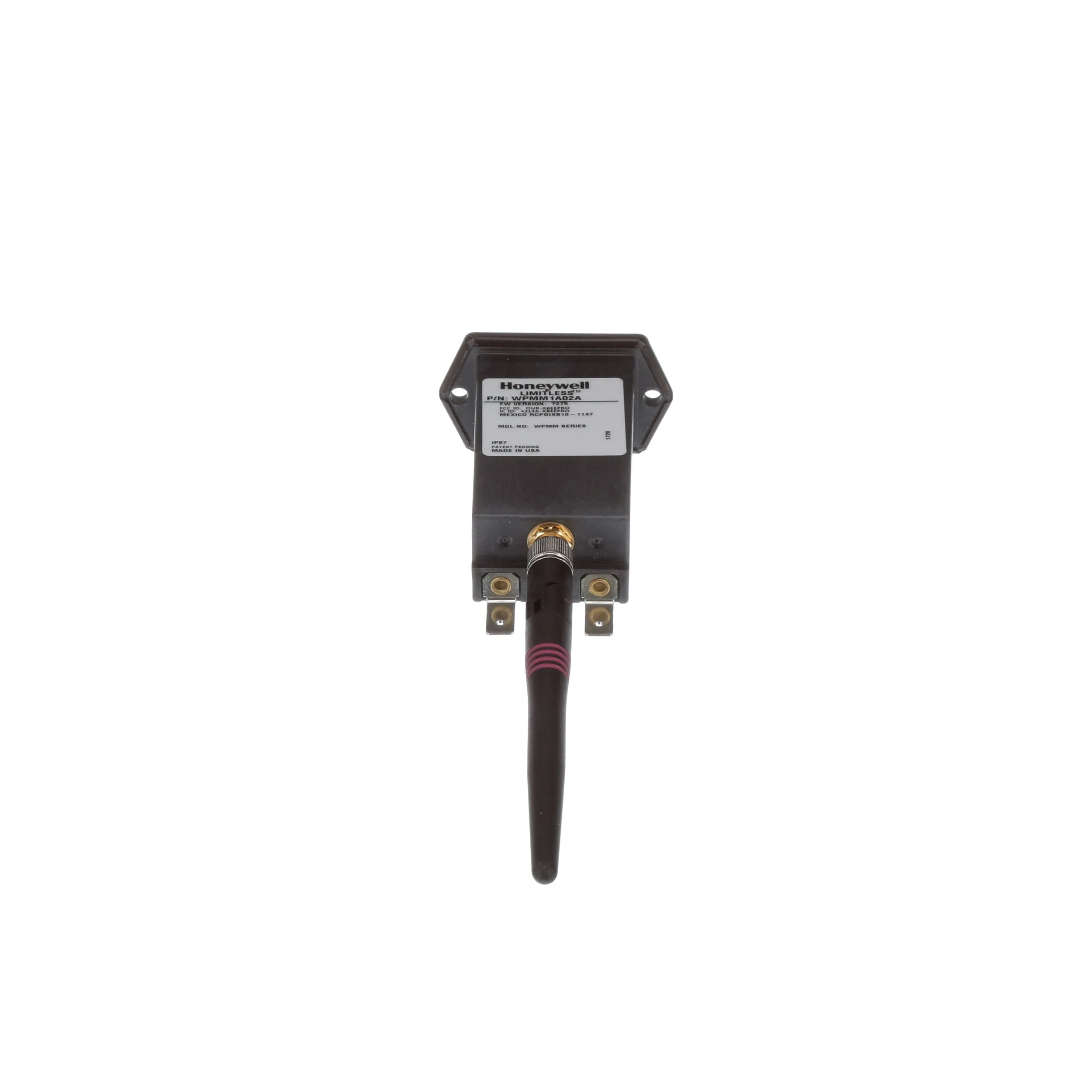

The new Limitless™ product line combines the best of MICRO SWITCH™ limit switches and latest commercial off-the-shelf wireless technology. The Wireless Panle Mount Monitor will provide a cisual, audi and NPN output based on a signal received from a Limitless™ switch. The Wireless Panel Mount Monitor will provide immediate indication of an actuator position change of the wireless limit switch. Limitless™ WPMM Series Monitor, 2.4 GHz, 2.1 dBi omni antenna (tilt & swivel design), for use in US/Canada.
