The Hakko N2 soldering system is the ideal solution for all your LEAD-FREE hand-soldering applications. The bench-top nitrogen generator creates nitrogen gas from filtered, dry compressed air and the FX-791 Nitrogen Controller delivers it efficiently and uniformly to the nitrogen compatible soldering iron and soldering area.

NOTE: If you do NOT have nitrogen availability at your work station, the compact FX-780 Generator is the best bang for your buck

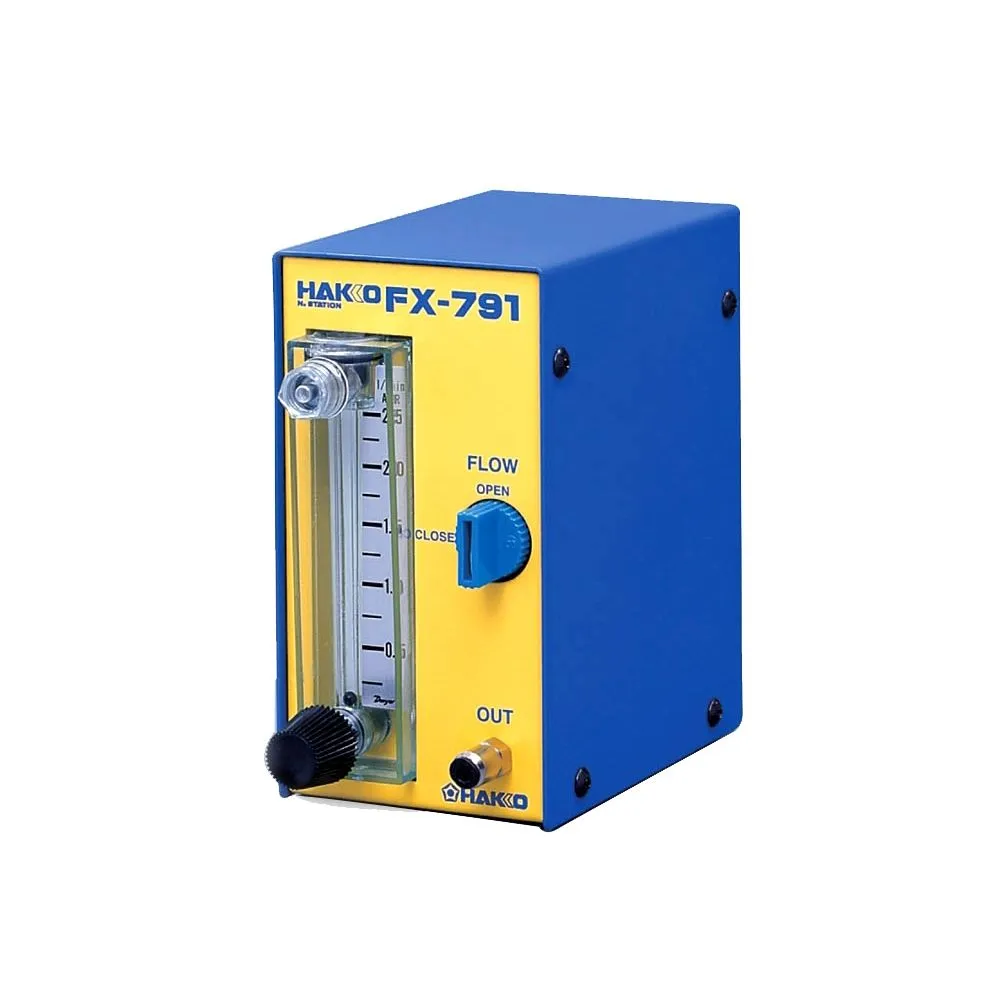

Compact FX-791 Nitrogen Controller
• controls the flow of nitrogen to the FM-2026 nitrogen iron with the FM-202 and FP-102 soldering  stations
• controls the flow level from 0.25 l/min to 2.5 l/min. (recommended level 0.5 - 1.5 l/min.) and should be adjusted to the tip shape
• ESD-safe
• Part Number: FX791-01

Nozzle Assembly (click on image for enlarged view)
• envelops the soldering iron tip and delivers uniform nitrogen gas to the soldering area
• efficient operation prevents the oxidation of solder

Call your local Hakko sales professional for a no obligation demonstration today.

Note: The 6 mm hose (black tubing) from the nitrogen generator to the controller are not included because length requirements vary greatly from customer to customer. The 6 mm hose (black tubing) can be purchased at your local hardware store.

Part Number: FX780-01 Generator  (see Specifications for details)
Part Number: FX791-01 Controller  (see Specifications for details)
Part Number: FM2026-01 N2 Soldering Iron (see Specs for details)

Part Number: FM2026-KIT
Note: FM-2026-KIT includes FM2026-01 (iron) and FX791-01 (Controller) ONLY
