Hot Sale Ebyte FRP Outdoor Antenna 2.4/5.8ghz dual band for Long distance communication
[Type]：fiberfglass antenna
[Gain]：6/9dBi
[Interface]：N-J
[Standing wave (SWR)]：≤1.5
[Frequency]：2.4/5.8GHz
[Resistance]：50Ω
[Weight]：140g

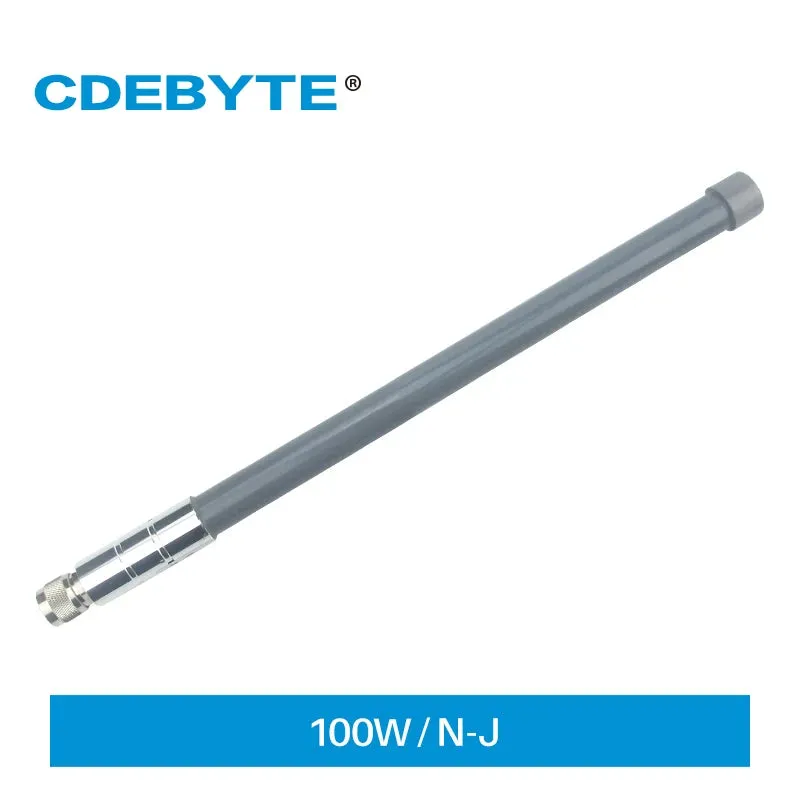

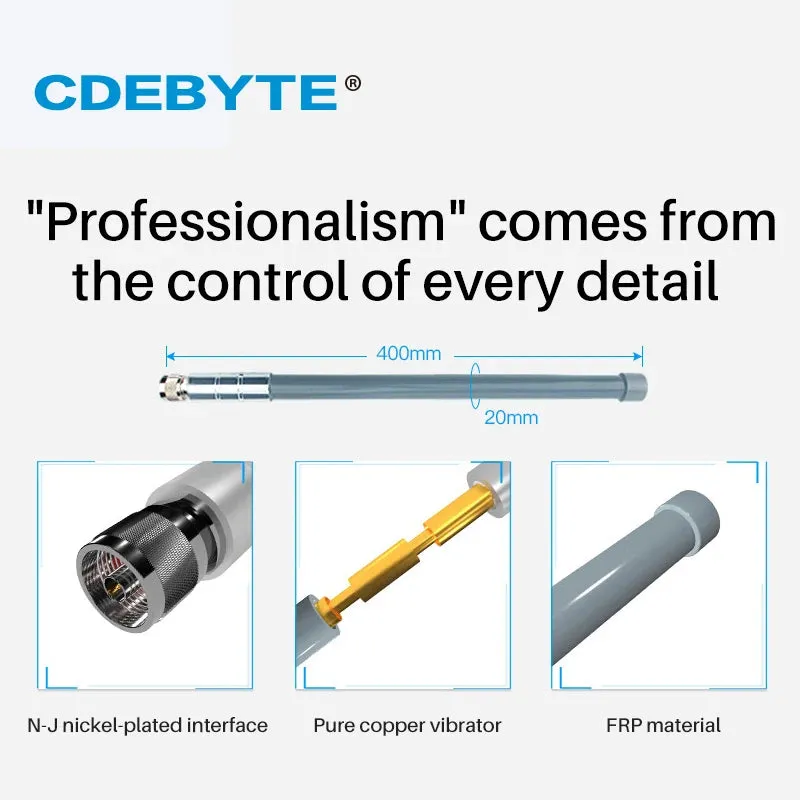

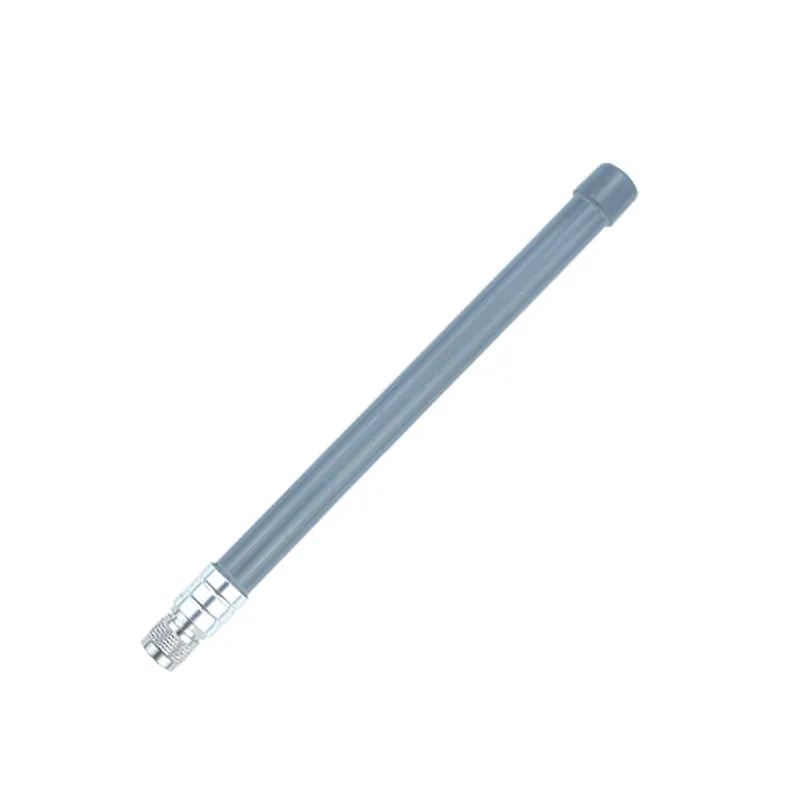

[Introduction]：TXWF-BLG-40 is a 2.4/5.8ghz dual-band fiberglass antenna, the antenna length is about 400mm, N-J interface (N male head). The antenna shell is made of glass fiber material, containing multiple groups of antenna vibrators, which has the advantages of high gain and long communication distance. The antenna is waterproof, sunscreen, wind proof, strong sealing, can be widely used in the wild and other bad environment places.
| Electrical Parameters | Value |
|---|---|
| Center frequency | 2.4/5.8GHz |
| Antenna gain | 8/10dBi |
| Voltage standing wave ratio | ≤1.5 |
| Polarization direction | Vertical polarization |
| Radiation direction | Omnidirectional |
| Input resistance | 50Ω |
| Power capacity | 100W |
| Other Parameters | Value |
|---|---|

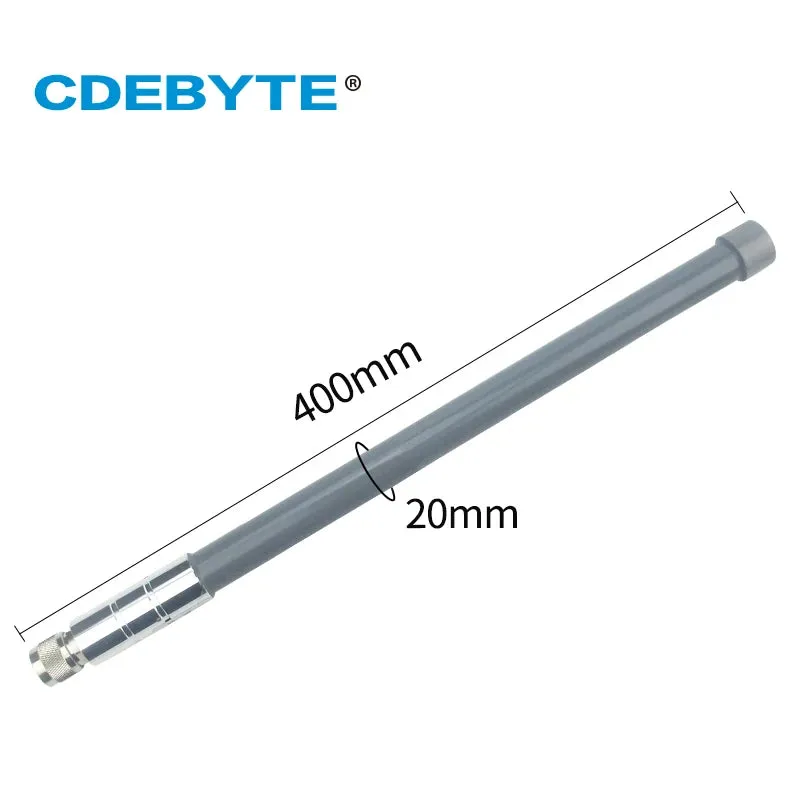

| Product size | 400mm |
| Weight | 140g |
| Antenna Diameter | Φ20mm |
| Material | Fiberglass |
| Connector | N-J |
| Operating temp. | -40℃～ 85℃ |
| Storage temp. | -40℃～ 85℃ |
