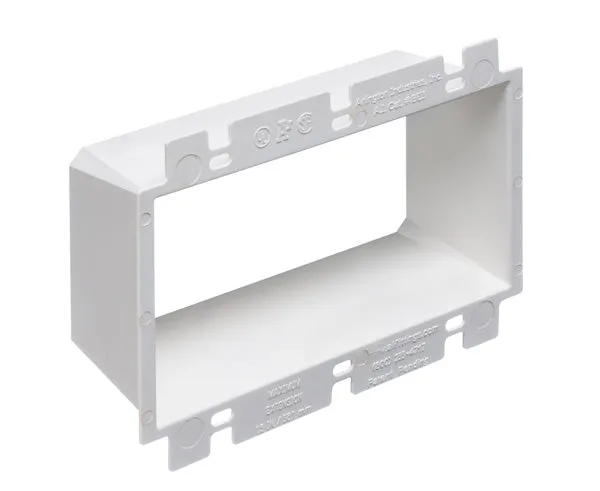

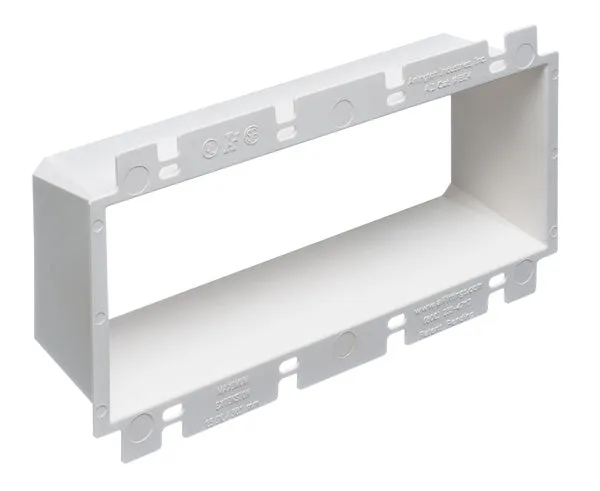

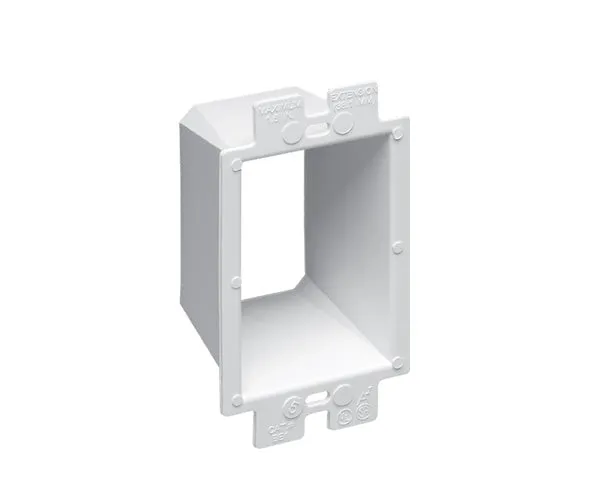

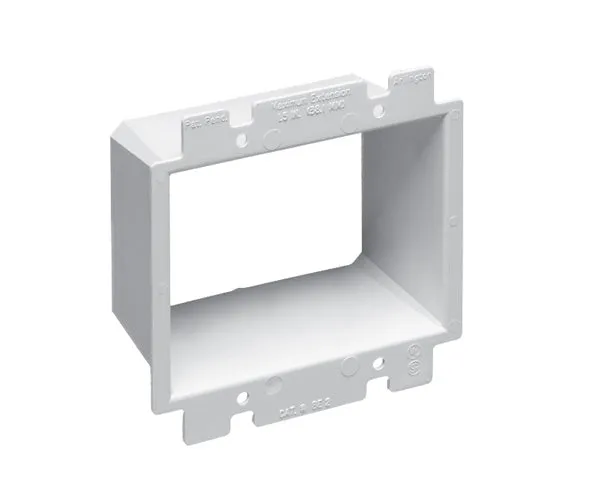

Drywall Mounting Bracket Box Extender

Our Drywall Mounting Box Extenders set back metal or non-metallic electrical boxes up to 1-1/2 inches. This product works with most steel and non-metallic outlet boxes, providing a level, fully supported wiring device that's flush with the wall surface. In steel boxes, they prevent arcing and shorting by creating a barrier between the box and device screws.

Features

Allows the contractor to comply with 2014 NEC Article 314.20
Levels and supports the wiring device where the box is set back from the wall surface (adjusts up to a 1-1/2" box extension)
Works in handy boxes and 4™ square electrical boxes with plaster rings for single switches or receptacles
Functions with all standard devices, switches, and GFCIs
Manufactured from 105™C continuous use 94V0 rated flame retardant plastic for safer installations (2 Hour Fire Rating)

Specifications

Product Number	BE1	BE2	BE3	BE4
Width	2.313"	4.125"	5.937"	7.749"
Height	4.188"	4.188"	4.188"	4.188"
Weight	0.038 lbs	0.054 lbs	0.080 lbs	0.098 lbs
Color	White	White	White	White
Material	Plastic	Plastic	Plastic	Plastic
UPC	018997401601	018997489609	018997489678	018997489685
