Name: Digital 594-MW-S 4' White AIS Antenna 4.5dB
SKU: 2202759

Product Details ＋

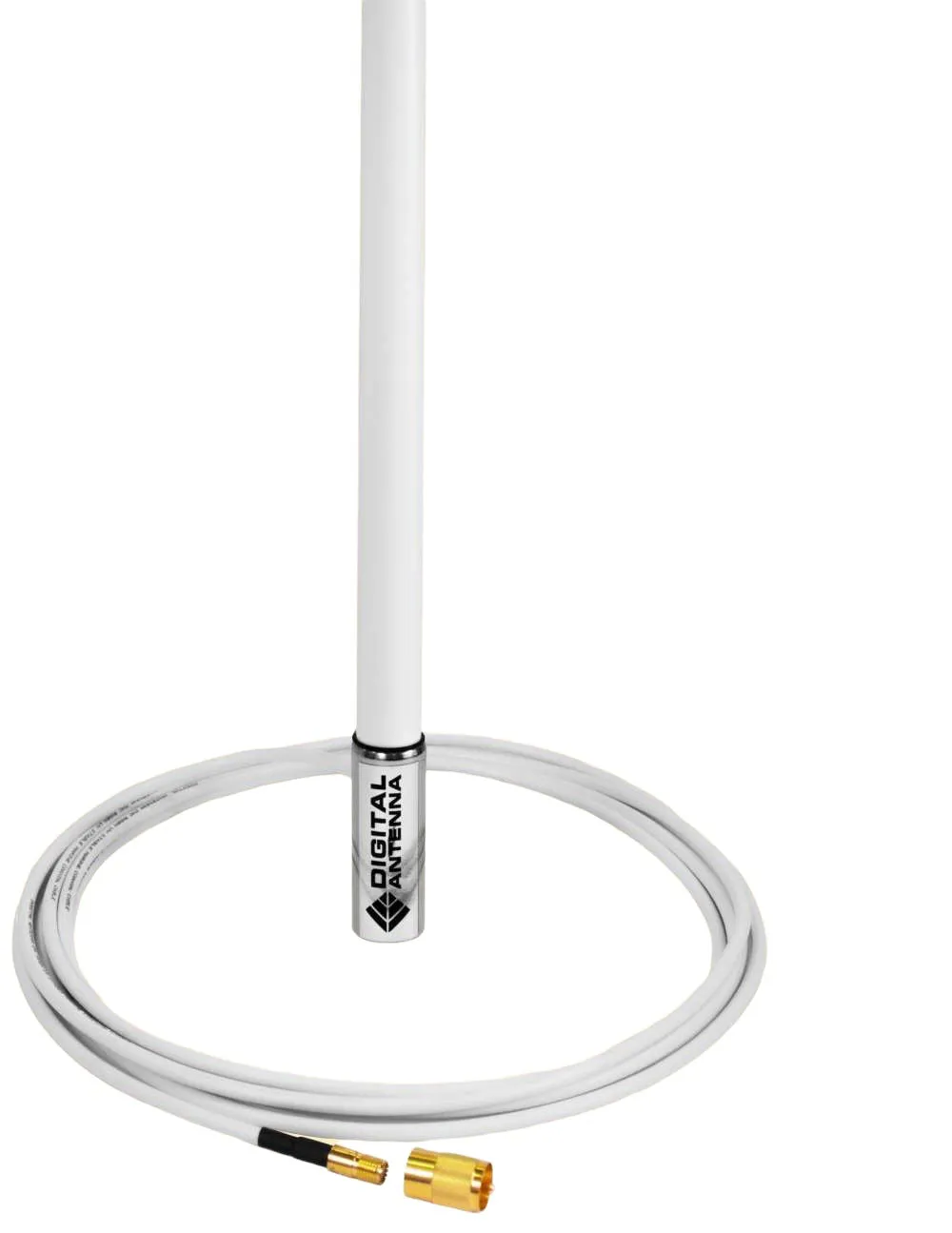

Digital Antenna 594-MW 4' AIS Antenna

Model: 594-MW

Designed for Digital AIS/VHF signals
4.5dBi omni-directional gain
Rugged fiberglass rod with UV stable finish
Secure soldered connections
316 stainless steel base
1"x14 female threaded base
15’ premium low-loss RG-8X cable
Factory installed mini-UHF connector
5 year warranty

The 594-MW is one antenna designed for the best performance on VHF and AIS signals. To ensure the greatest AIS and VHF range, Digital Antenna’s new 4.5dB gain AIS/VHF antenna features a less than 1:5:1 SWR on both the VHF (156MHz) and AIS (162MHz) frequencies.

Digital VHF radio-based transponder systems need antennas designed for digital signals. Digital Antenna is the only manufacturer to design all antennas to maintain and maximize digital signals for the best transmit and receive range.

Ideal for use on any size commercial or recreational vessel. Perfect for use with combined VHF/AIS radios.

Factory installed mini-UHF connector (less than 3/8" OD) and included PL259 adapter makes a quick and secure connection to the radio. (no soldering needed)

Specifications

Radiation Pattern	Omni-Directional
Gain	4.5dBi
Bandwidth	VSWR: < 1.5:1 = 1 56-162.5 MHz (6.5MHz)
Cable	15’ Digital Antenna exclusive low loss RG-8X
Impedance	50 ohms
Max Input Power	50 watts
Exterior Finish	White polyurethane high gloss UV stable
Dimensions	4’ length x 1" OD taper
Weight	1.7 lbs
RF Connector	Mini-UHF female with included PL259 adapter
Installation	1"x14tpi female threaded base
Elements	Brass - Hand soldered
Polarization	Vertical
Wind Rating	>160KPH
Operating Temp	30 F to 175 F
Warranty	5 Years
Compliance	Automatic Identification System (AIS)
